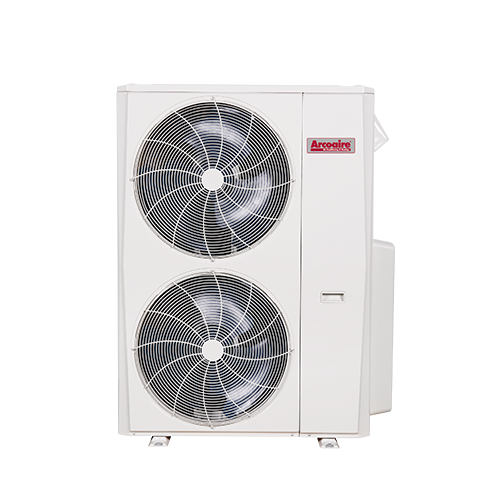

Bring comfort to multiple spaces with the new multi-zone heat pump. This energy-efficient unit provides ratings of up to 22.4 SEER2 and up to 12.5 EER2 with the flexibility to be connected from two to five indoor units. Equipped with Condenser High-temperature Protection, Refrigerant Leakage Detection and available in sizes 18 to 48, there is certainly a size to meet your cooling and heating needs.
- Inverter Compressor
- Up to 22.4 SEER2 cooling efficiency
- Up to 12.5 EER2 heating efficiency
- Available in 208/230V
- Sizes: 18 / 27 / 36 / 48 /
- Built-in basepan heater
- Condenser high-temperature protection
- Refrigerant leakage detection
- Quiet outdoor operation, as low as 61 dB(A)1
- Anti-corrosive fin coating
- 10-Year Parts Limited Warranty2
- Up to 22.4 SEER2
- Up to 12.5 EER2
- Up to 10 HSPF2
- Outdoor sound: as low as 61 decibels1
- Cooling operating range -22°~122° F (-30°~50° C)
- Heating operating range -22°~75° F (-30°~24° C)Total piping length 197~328 ft.
- Vertical Lift/Drop piping Length 49~65 ft
- Inverter Compressor
- 1.75 – 4.0 Ton 2, 2.5, 3 & 4 Ton
- 208/230V
- Heavy-gauge, galvanized steel construction
- Primed and coated with a 100% coverage, baked-enamel finish in white
- Up to 22.4 SEER2
- Up to 12.5 EER2
- Up to 10 HSPF2
1Quietest size within each model group during low fan-speed operation
2If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
California residents please see Proposition 65
